Bryant Remanufactured Lectraline 2 Grinder LL2

The Bryant LL2 CNC Grinder is midrange grinder in the Lectraline series of precision grinding machines, with a 10 inch (254mm) swing and a maximum bore of length of 3 inches (76mm). the LL2 can be configured to grind almost any type of workpart, including straight and tapered bores, OD's faces, backfaces, and complex forms. Multiple surfaces can be simultaneously, sequentially, or vector ground in a single chucking, saving set-up time and ensuring precision concentricity and squareness.


CNC North can source and remanufacture an LL2 for your specific part or rebuild your LL2 to original specifications with state-of-the-art components.

Features

  • Simple Operation and Simplified Operator Training
  • Design Uses Standardized Tooling and Components
  • Multi-Directional and Vector Grinding
  • Self Diagnostics
  • Fast Cycles
  • Energy Efficient
  • Quick Set-up and Changeover
  • Small Lot Runs or High Production
  • CNC Programmable Contour Dress and Grind
  • Hydrostatic Slides
  • 'Push-Button' Size Correction

Options

  • Automatic Robotic Loading
  • Rotary Contour Grinding Capability
  • CNC Wheel-Speed Control
  • CNC Orthogonal Dress Capability
  • Peak Motor-Load Infeed Capability
  • Crash Protection Stock Sensor
  • Angular X-Axis for Grinding Tapers
  • In-Process Gaging
  • CNC Programmable Contour Dress and Grind Profiles
  • In-process or Post-Process Gaging Capability

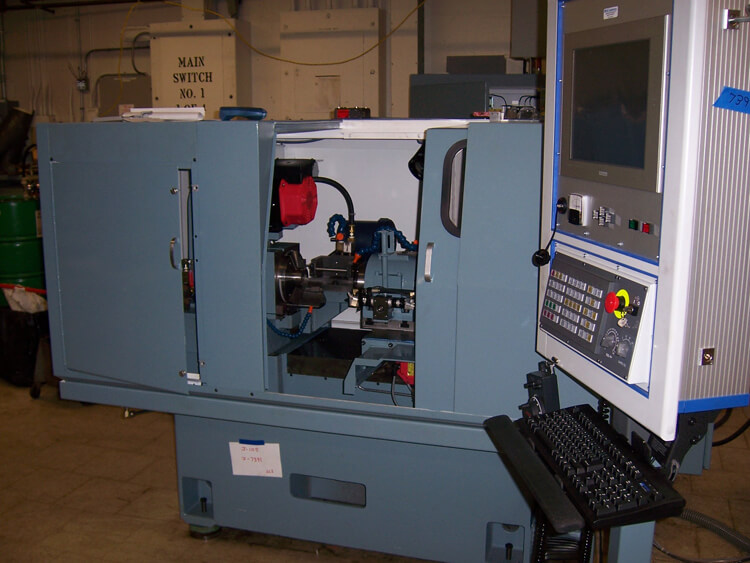

Remanufactured Bryant Grinder LL2
