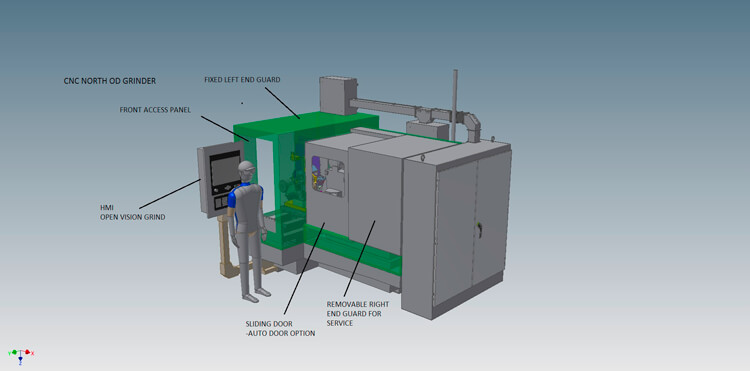

New CNC North OD Form Grinder 14-14

Model Designation is the machine's X Travel by Z Travel

Standard or Custom Configurations are Available

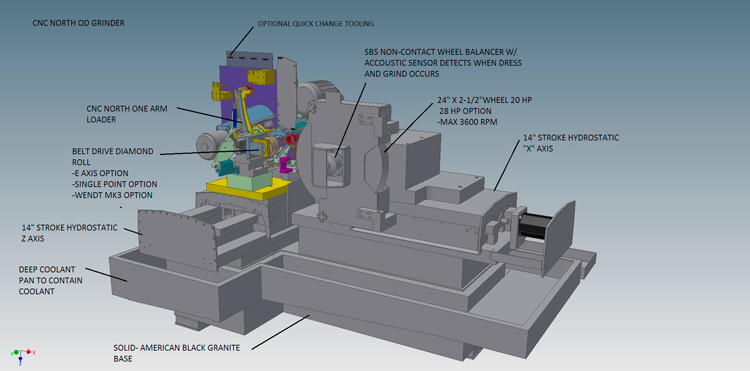

Machine Features:

  • Machine base made of the densest Black African or Black Impala Granite, providing superior machine damping over cast iron, which also allows for customized machine design (no patterns of casting required.)
  • Guarding design to control coolant affect on slides and granite base optimizing machine thermals.
  • CNC North designed Hydrostatic Linear Motor driven.
  • X-axis 14” stroke
  • Z-axis 14” stroke
  • Direct feedback absolute linear scales for both axes Programming resolution of (.000004”).
  • Ball bearing Work spindle, .0001” axial and radial runout.
  • Direct drive high frequency wheel spindle, various options available.
  • Various dressing options available.
  • Various work holding options including Magnetic, chuck type available.
  • Quick change tooling.
  • Wheel Balancer with integrated AE sensor.

Options:

  • Hydrostatic Work spindle.
  • Auto loading options both FANUC Robotics and in machine CNC North designed options.
  • Load assist for large parts.
  • In-Process Gaging.
  • Post-Process Gaging.
  • Pre-Process Gaging.
  • Offline Tooling Package.
